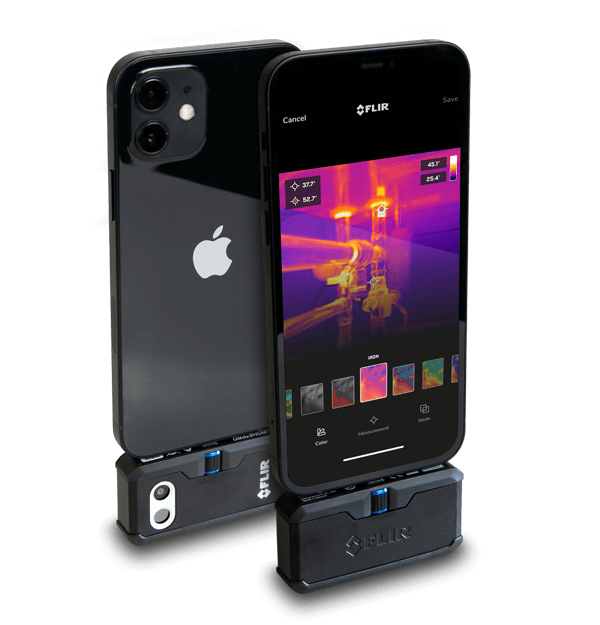

FLIR OnePro iOS Thermal Imaging Camera Attachment
FLIR OnePro iOS Thermal Imaging Camera Attachment
The FLIR ONE Pro helps you find invisible problems faster than ever, whether you're inspecting electrical panels, troubleshooting mechanical systems, looking for HVAC problems, or finding water damage. This FLIR ONE Pro-Series camera offers 4x the native resolution of the FLIR ONE Pro LT, for sharper image clarity that's further enhanced by the revolutionary FLIR VividIR. Measure temperatures more than 3x higher than any FLIR ONE model—up to 400°C (752°F)—with a sensitivity that detects temperature differences down to 70 mK. Packed with powerful measurement tools, the FLIR ONE Pro will work as hard as you do.
Features
IMAGE DETAIL & CLARITY
With its 19,200 pixel resolution—a 4x improvement over the FLIR ONE Pro LT—and VividIR, FLIR ONE Pro gives you the ability to see more detail when it matters most.
EXPANDED MEASUREMENT
Measure temperatures between up to 400°C (752°F)—compared with a maximum of 120°C (248°F) for the FLIR ONE Pro LT—with up to three spot temperature meters and six temperature regions of interest.
JOBSITE TOUGH
Built to take the abuse that working on a jobsite dishes out every day, FLIR One Pro is rated to take a drop from 1.8 meters and is built to last.
Specifications
Thermal Resolution: 160 × 120
Battery Life: Approximately 1 hr
Object Temperature Range: -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
Phone: iOS
Accuracy: ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
Operating Temperature: 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
Spot Meter: Hottest, Coldest and 3 spot measurement
IMAGING & OPTICAL
Adjustable MSX distance: 0.3 m — Infinity
FLIR Screen-EST Mode: No
Focus: Fixed 15 cm — Infinity
Frame Rate: 8.7 Hz
General Description: Thermal and Visual Cameras with MSX
HFOV/VFOV: 50° ±1° / 43° ±1°
Palette: Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
Shutter: Automatic/Manual
Thermal Resolution: 160 × 120
Thermal Sensitivity/NETD: 70 mK
Thermal Sensor: Pixel size 12 µm, 8 — 14 µm spectral range
Video and Still Image Display/Capture: Saved as 1440 × 1080
Visual Resolution: 1440 × 1080
POWER
Battery charge time: 40 min
Battery Life Approximately: 1 hr
MEASUREMENT & ANALYSIS
Accuracy: ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
Object Temperature Range: -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
Spot Meter: Hottest, Coldest and 3 spot measurement
GENERAL
Battery charge monitor: 0 — 100%
Dimensions (H x W x D): 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in)
Phone: iOS
Weight: 36.5 g
ENVIRONMENTAL & CERTIFICATIONS
Certifications: MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
Drop test: Drop from 1.5m
Emissivity Settings: Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Non-Operating Temperature: -20°C — 60°C (-4°F — 140°F)
Operating Temperature: 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
COMMUNICATION & DATA STORAGE
Capture modes: Video, Still image
Charging: Female USB-C (5V/1A)
File Formats: Radiometric JPG, MPEG-4 (file format MOV)
Video: Male Lightning
